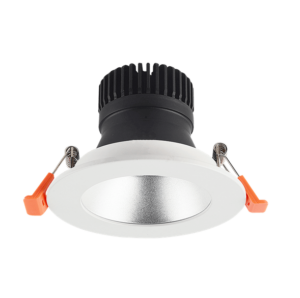

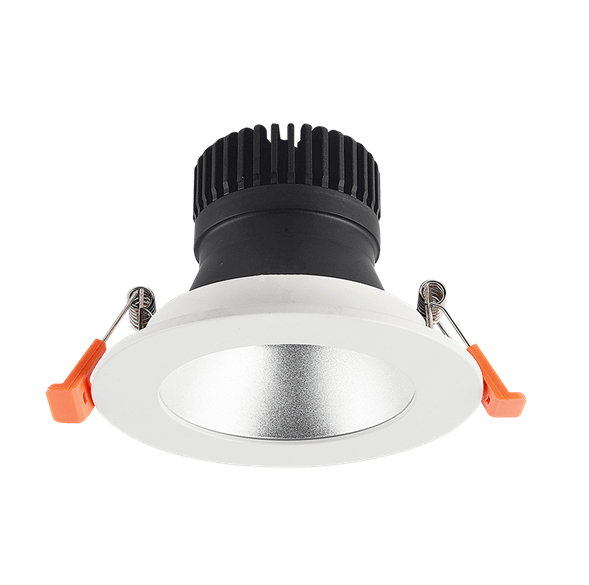

ALPHA-T10 1000LM 940 FS 38DEG WH IP20
PRODUCT FEATURES
● ALPHA-T is a Smartlux energy efficient smart led professional downlight series which is designed to replace old conventional metal halide and compact fluorescent downlights.
● Tiny size version for ceiling recess mount by the means of 2 stainless steel mounting brackets for firm installation to 3-15mm ceiling thickness. Outer diameter of 95mm with ceiling aperture of 80mm.
● Body & Trim in die-cast aluminium powder coated in RAL finishes.
● Passive cooling system with pure aluminium heatsink powder coated ensuring the heat management system inside the luminaire maintaining the led source temperature and optimum performance for longer life with lowest depreciation of the luminous flux.
● Aluminium anodized reflector Glare-fee design, perfect light spot with precise cast with UGR between 13-16 Glare-fee design, perfect spotlighting and precise cast suitable for comfortible soft lighting atmosphere for residential & hospitality and also at workplaces with 40° cut-off angle preventing glare issues in computer labs, schools, offices. 38° beam angle as standards, options of 15°/24°/36°/60° on request.
● Designed with two types of dark light reflectors, Sandblasted as standards and bright silver mirror-finish as option.
● Premium high efficiency COB LED with CRI>90, high luminous with 2 Step Macadam’s to ensure SDCM<3, options of Citizen or Cree LED.
● High power factor led driver non-dimmable 220-240V, 50/60 Hz with PF<0.95 as standard.
● Other dimming protocols Triac, 1-10V, DALI are also available upon request.
● ALPHA-T10 is built to with high efficacy of 100lm/w (fixture’s real lumen) as standard from 8W up to 12W. Upgradable up to 120lm/w.
● Median useful life L70B50 – 101000 h, L80B50 – 68000 h, L90B50 – 31000 h @ 25°C.
● 5 Year warranty.
PRODUCT OVERVIEW
PRODUCT DATA
PRODUCT ASSET DOWNLOADS
PRODUCT OVERVIEW
| Ordering Code | 49241 | ||
| Product Name | ALPHA-T10 1000LM 940 FS 38DEG WH IP20 | ||
| Technology | CoB LED – Zhaga-compliant | ||
| Housing | Aliminium extrusion powder coated | ||
| Reflector | High purity anodized aluminium, glare-free (UGR<13-17), 38° BA | ||
| Trim | Die-cast aluminium in powder coated in white RAL | ||
| General Application | Offices, Schools, Work places with computers, Hospitals, Hotels | ||
| Certification | EU, CE, TUV, RoHs | ||
| Leds | Built-in Citizen CoB | ||
| Fixture Luminous Flux (lm) | 1000 | ||
| Luminaire Efficacy (lm/W) | 100 | ||
| Colour Temperature (K) | 4000 | ||
| Light Colour | Neutral White | ||
| CRI (Ra) | >90 | ||
| Colour Variation Initial (SDCM) | <3 | ||
| Photobiological Risk Group | RG0 | ||
| Total Power Consumption (W) | 10 | ||
| Main Voltage (V) | 240V, 50/60HZ | ||
| Electrical Protection | Class I or II | ||
| Dimmable | Non dimmable as standard, Dimming options protocols are available upon request | ||
| Colour | Standard: white front ring RAL 9016. Other RAL colours are also available upon request | ||
| IP rating | IP23 | ||
| IK rating | 02 | ||
| Included Lamp | Integrated LED | ||
| Diffuser | No diffuser / Open reflector | ||
| Driver | HF Electronic on/off non-dim with high power factor correction PFC > 0.95 | ||
| Operating Temperature °C | -20 to +45 | ||
| Housing | Die-Cast aluminium Powder coted | ||
| Mount | Ceiling recessed with the means of 2 Stainlesssteel mounting brackets | ||
| Glow wire test © | 650°C | ||
| LOR (%) | 100% | ||
| Average life (Normal) h | L70B50 – 101000 h, L80B50 – 68000 h, L90B50 – 31000 h @ 25°C. | ||
| Warranty | 5 Years | ||
Product Overview
Project Application
Product name
Technology
General application
E-number FI
Product name
Fixture luminous flux (lm)
1000
Luminaire efficacy (lm/W)
Colour temperature (K)
3000
Colour Variation Initial (SDCM)
<3
Electrical protection
Warranty
PRODUCT DATA
Product Data
General data
Product name
Technology
Housing
Die-Cast aluminium Powder Coted
Mount
Ceiling recessed with the means of 2 Stainlesssteel mounting brackets
General application
Operating temperature range (°C)
-20 to +45
Warranty
